LF-1325LC Filber Laser Cutting Machine
Features: LF1325LC fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless-steel kitchenware, storage cabinet and other cabinets, is closely related to people’s daily life. Used for cutting a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
Description
LF1325LC fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless-steel kitchenware, storage cabinet and other cabinets, is closely related to people’s daily life. Used for cutting a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
Features:

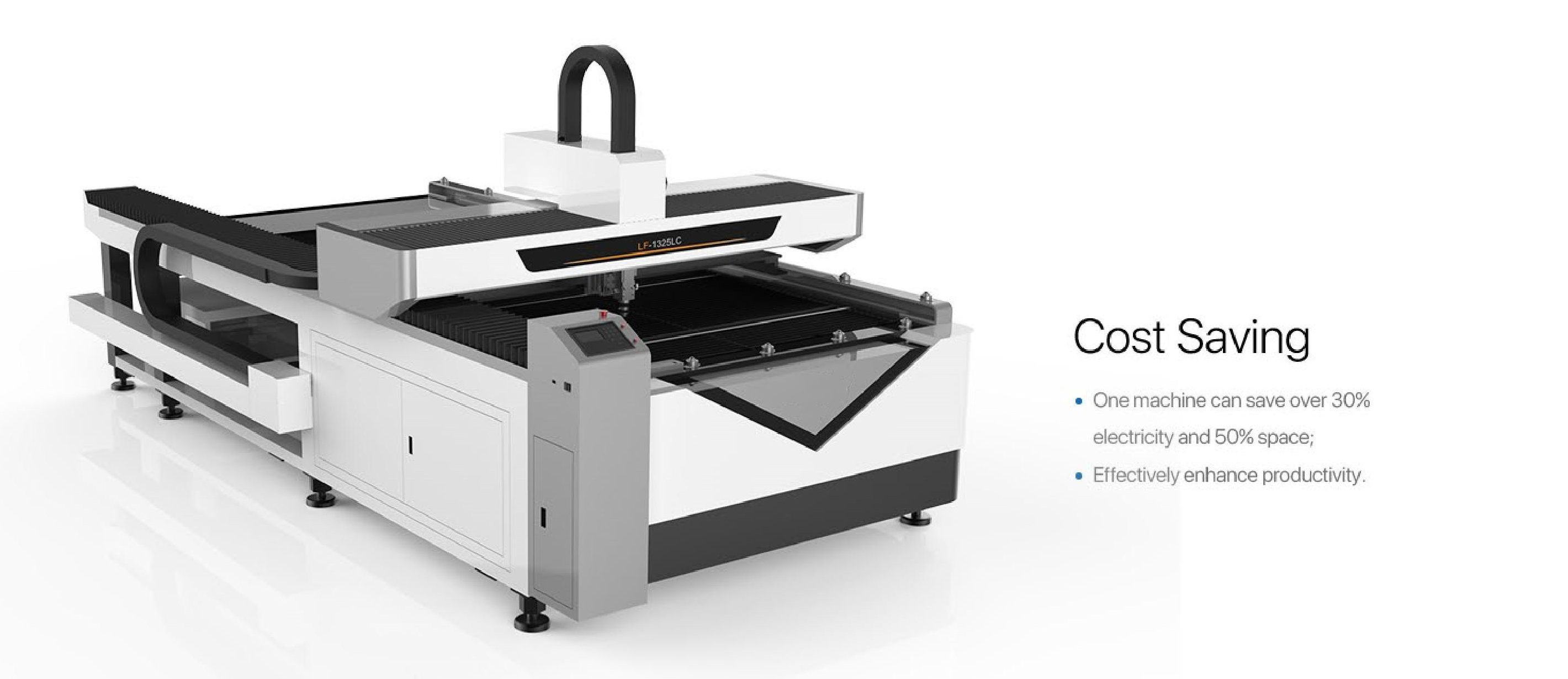

Cost Saving

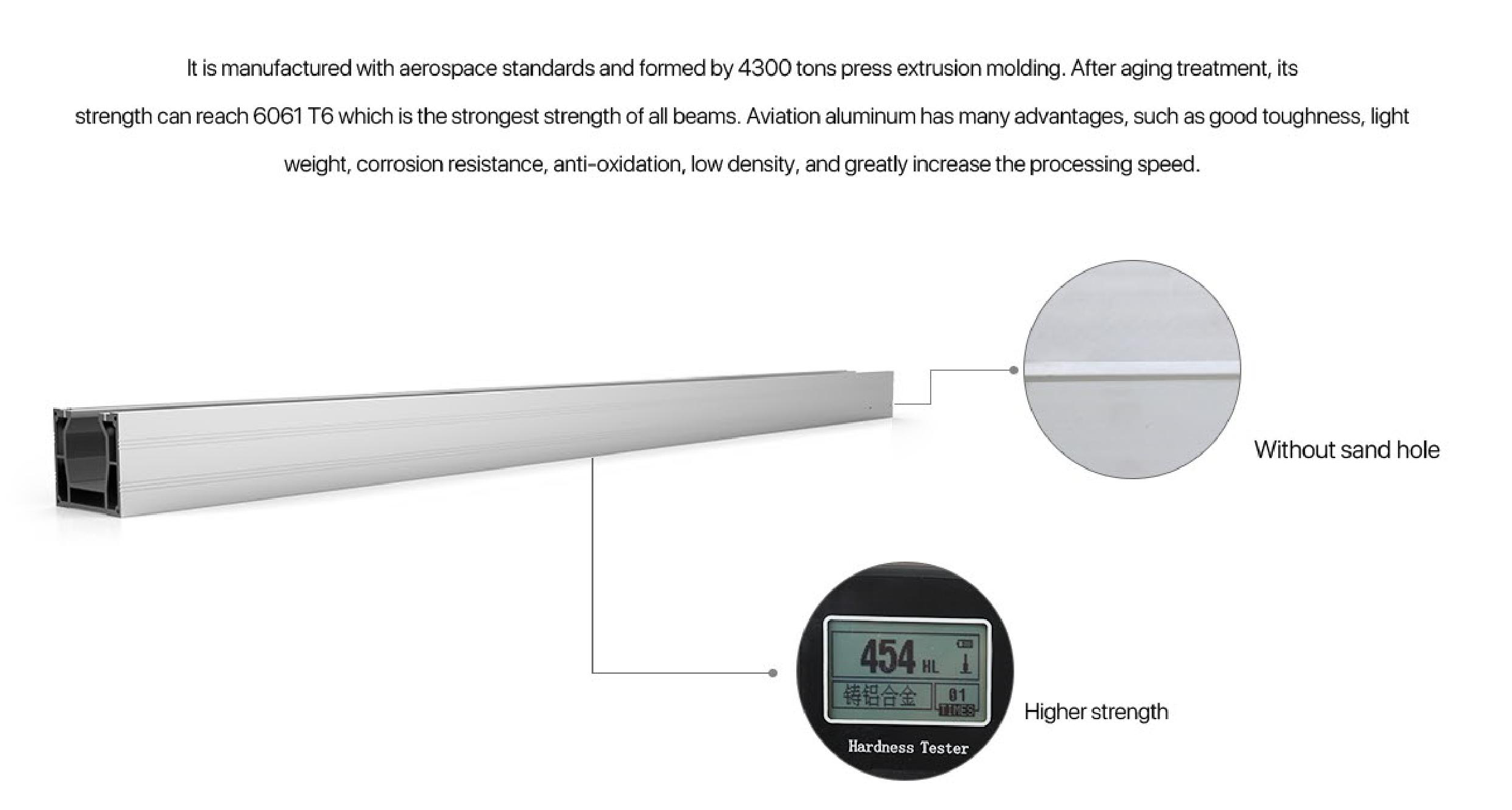

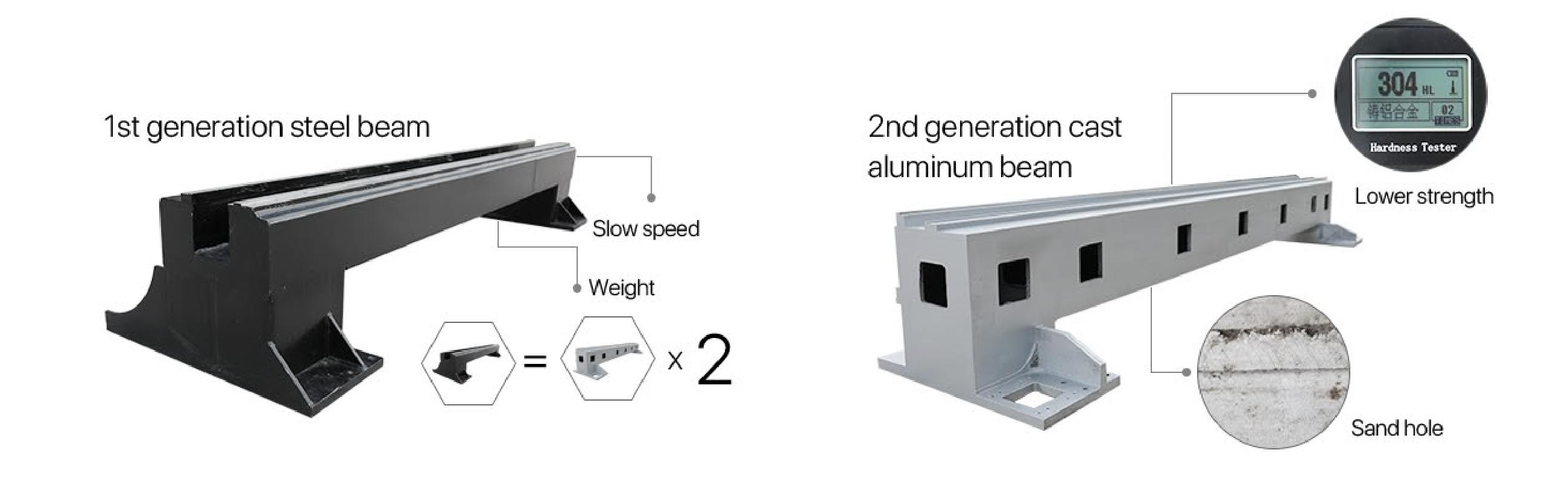

The Third Generation Aviation Aluminum Beam
Main Technical Parameters：
| Machine Model | LF1325LC |
| Working area | 2500mm*1300mm |
| Dimensions | 3800*1850*1300 |

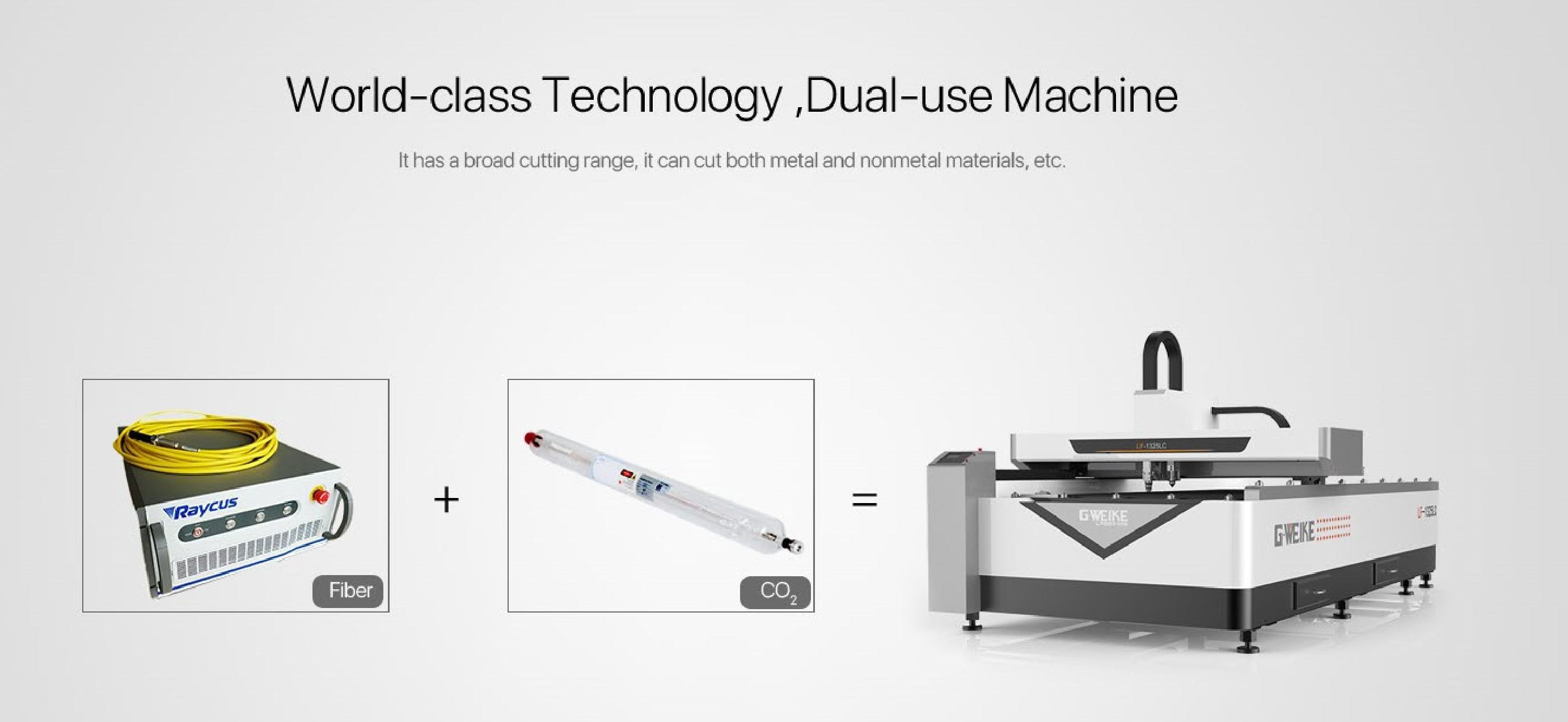

| Laser power | 1000-1500w Fiber laser source 150w CO2 laser source |
| Cutting Thichness | 20mm (Depend on materials) |
| Repeat positioning accuracy | ±0.02mm |
| Max speed | 60m/min |
| Operating Temperature | 0℃~40℃ |

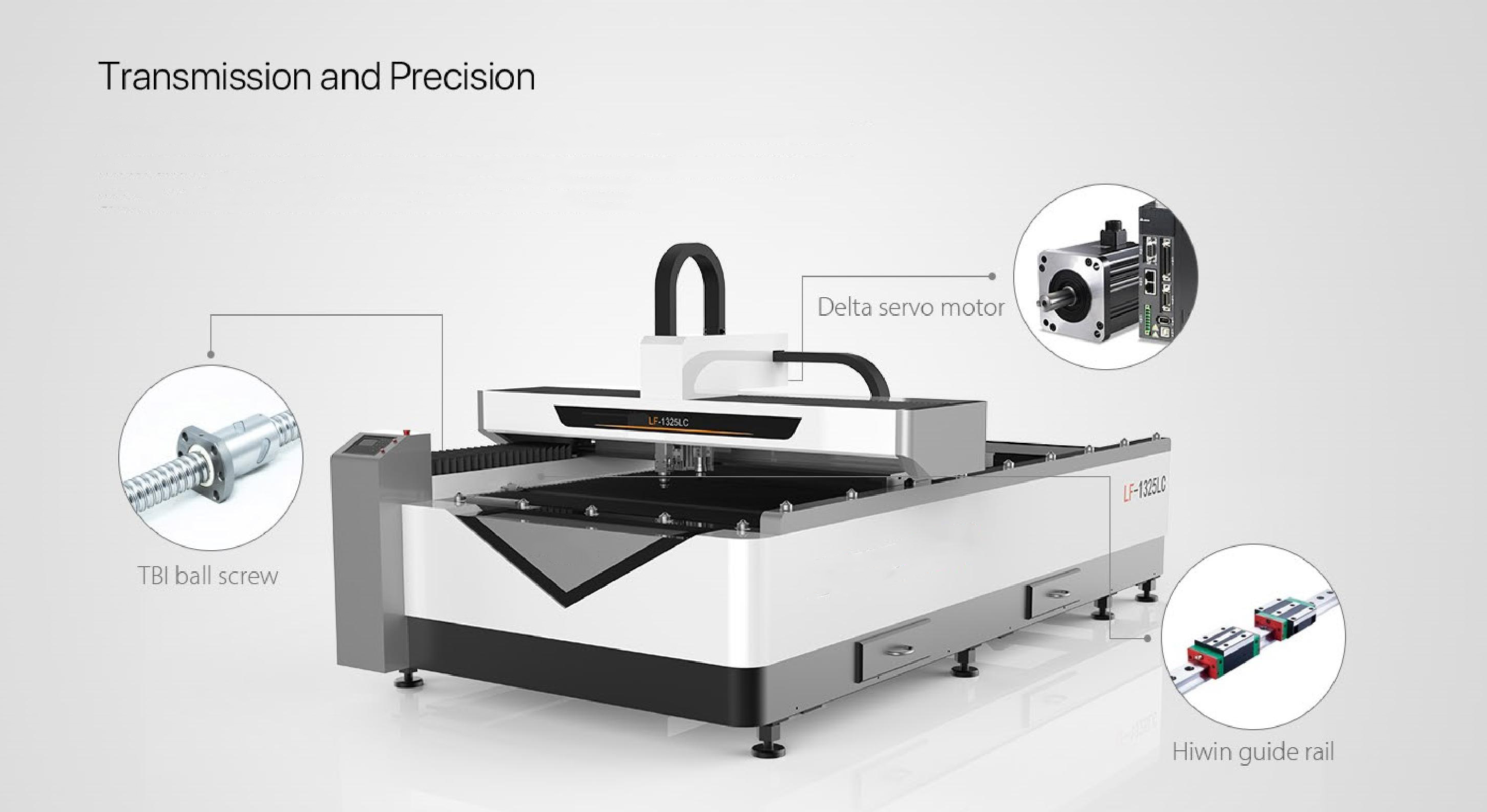

| Transmission | Imported TBI ball screw |
| Max acceleration | 1.0G |
| Specified Voltage and frequency | 220V/380V 50Hz/60Hz |

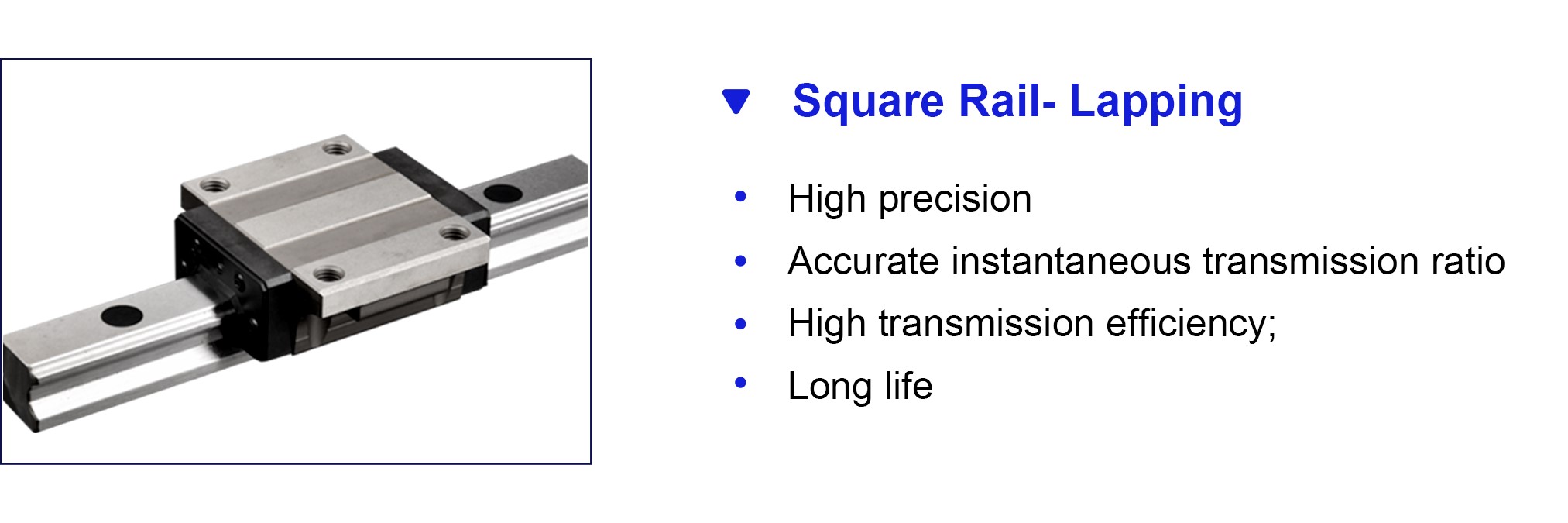

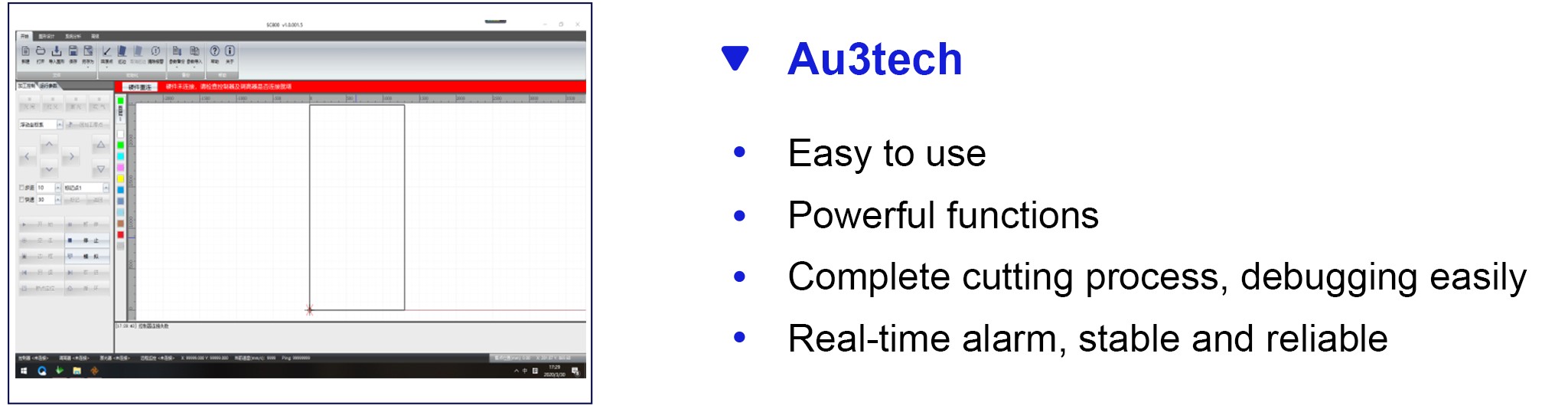

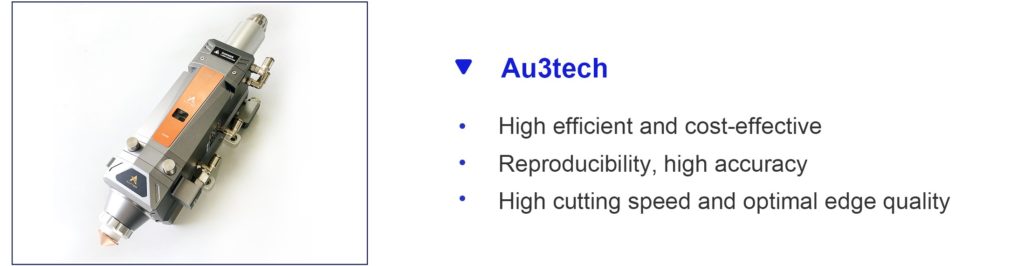

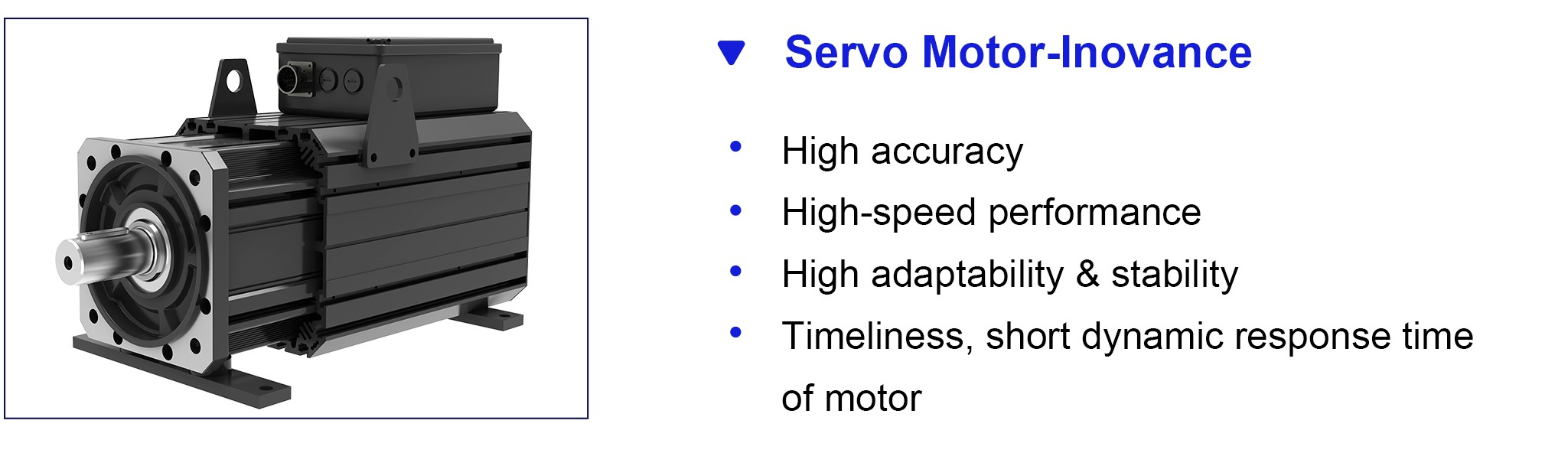

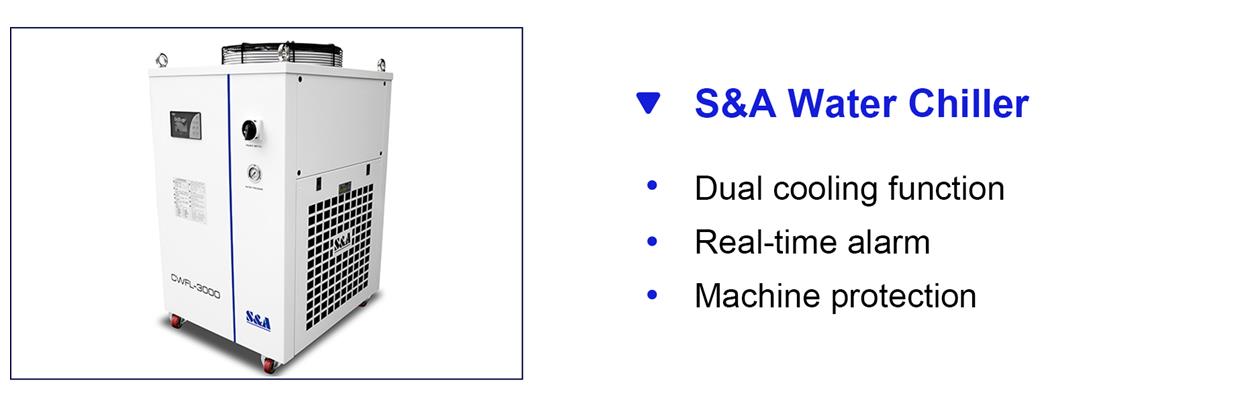

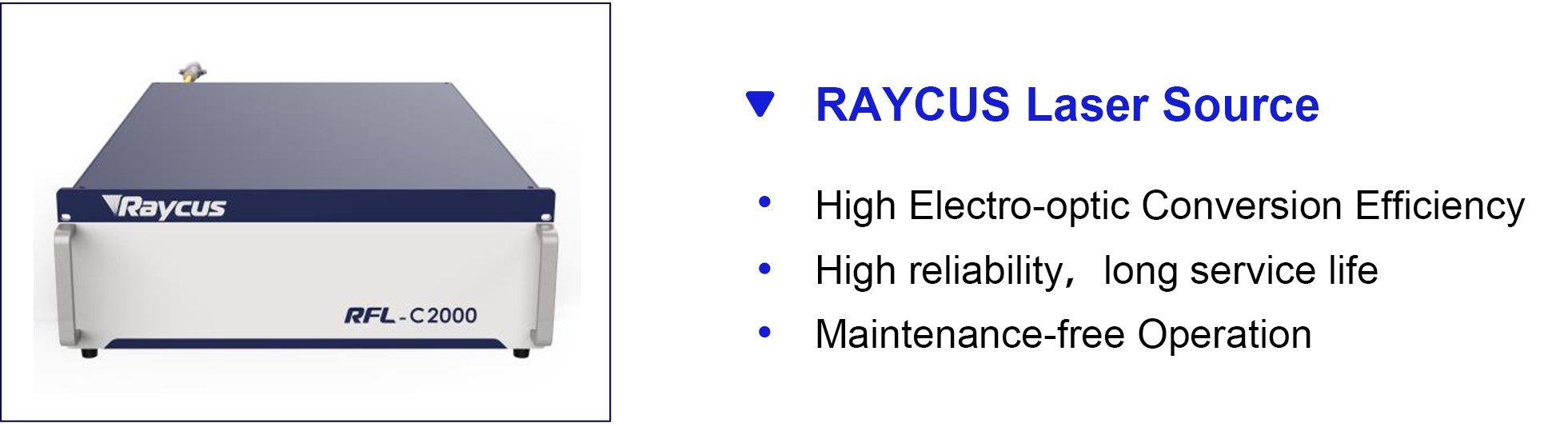

Main Configuration:
